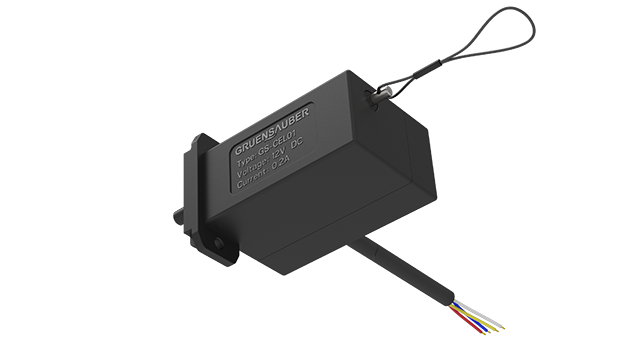

Mini Motor Lock
The electronic lock locking structure prevents the plug from being detached from the socket. A motor is mounted inside the electronic lock, and the motor is rotated forward and backward by the forward and reverse voltages.
The slot on the plug is locked during the forward movement to prevent the off-axis. The lock function releases the lock cylinder during reverse movement to achieve the unlock function.
This type electronic lock is internally driven by a motor,
• safe and reliable,
• lower power
• longer living life.
Prevent the charging plug from being released
artificially or accidentally
  • Instant power mode, low energy consumption
  • Small size for installation in tight spaces
  • Power failure or failure can be manually unlocked
  • Protection class IP55
Specification Table
  • Rated Voltage:12 V DC
  • Rated Currency0.2A
  • Power Supply
  • Method1PIN1 and PIN2 are turned on or off to maintain a voltage of 0.2S (recommended)
  • Method20.5S~1.0S (continuous power supply for 3 seconds MAX)
  • Living lifeworking cycle is more than 50,000 times
