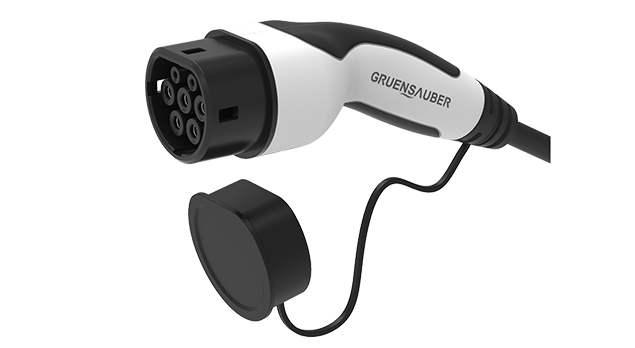

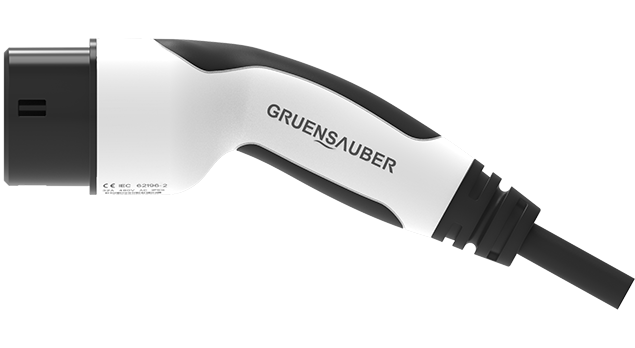

IEC Female Charge Plug
The new design of the type 2 AC vehicle connector has been developed based on the IEC 62196 for the European market. Convenient handling is ensured by using high-quality materials and, in particular, the handling area consisting of two components. The locking controlled by the vehicle inlet via an actuator bolt prevents the vehicle connector from being pulled under load. This provides maximum safety and reliability during the charging process.
Return
Application
Meet IEC 62196-2 2016 TYPE 2 SHEET 2-IIb,BEV, PHEV, EVSE
Description
  • Ergonomics design, handle over molding, anti- slip, nice appearance
  • Work properly withstand a drop of 1.5m and 2 tons car crash
  • IP rating: IP55
  • Dustproof and waterproof protection cap: optional
  • Single phase/ 3 phase: optional
Specification Table
  • Insert & extract life cycle:>10,000
  • Rated Voltage:16A,32A
  • Rated Current:Up to 250V
  • Operation environment temperature:-30°C~+50°C
  • IP Degree of Protection:IP55
