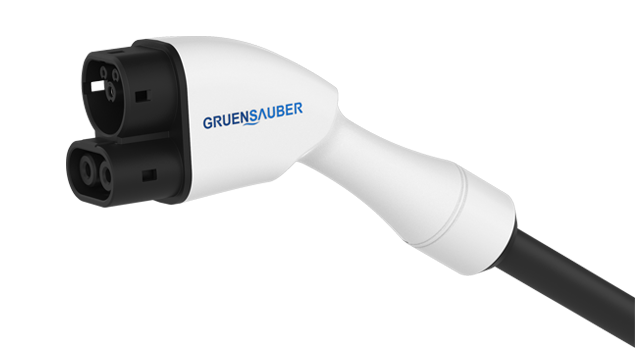

CCS2 DC Plug
Certified compliance to Standards: IEC62196-1: 2014 and IEC62196-3: 2014 Specifically, design for use in Combined Charging System applications Utilizes proprietary silver-plated contacts for long-life durability
Return
Application
Meet IEC 62196-3 BEV, PHEV, EVSE
Description
Protection level: IP55 (when the plug is connected to the socket)
Operating environment temperature: -40ºC to 50ºC
Mechanical life: >10000 times
Insertion and extraction force: <100 N
Specification Table
Maximum charging power: 200 kW
Rated voltage: 1000V DC MAX
Rated current: 200A MAX
Temperature control resistance: PT1000 or NTC
Number of power pins: 3 (PE, DC+, DC-)
Number of signal contacts: 2 (CP, PP)
Resistance: 1500Ω (between PE and PP)
--PT1000 and NTC optional for temperature control
