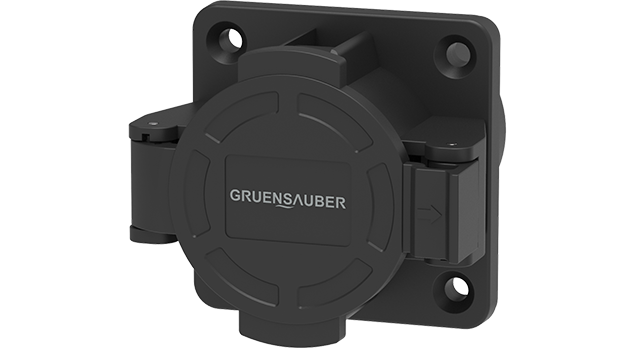

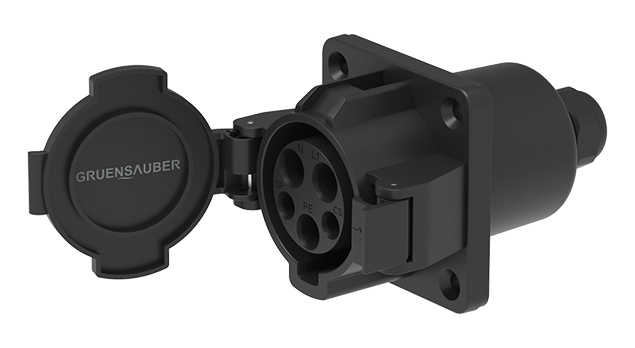

SAE Charge Inlet
The new design the type 1 AC vehicle connector has been developed in accordance with SAE J1772 and IEC 62196-2. The requirements of the automotive industry have been met with this vehicle connector. The lock between the vehicle and vehicle connector is closed using a high-quality metal lever. This metal lever is also locked by the electromechanical actuator in the vehicle inlet. This makes pulling the vehicle connector under load impossible.
SAE J1772 & IEC 62196-2
  • Ergonomics design, handle over molding, anti- slip, nice appearance,
  • Work properly withstand a drop of 1.5m and 2 tons car crash
  • Mechanism latch make sure the stable & reliable connection under charging status
  • IP rating: IP55
  • Dustproof and waterproof protection cap: optional
  • Connector button has a security lock
Specification Table
  • Insert & extract life cycle:>10,000
  • Rated Voltage:16A,32A
  • Rated Current:Up to 250V
  • Operation environment temperature:-30°C~+50°C
  • IP Degree of Protection:IP55
